Integrated Passenger Information System Consisting of Train Information Display Boards, Coach Guidance Display Board and Other IPIS System Equipment’s Specification No. RDSO/SPN/TC/108/2019, Version 1.0

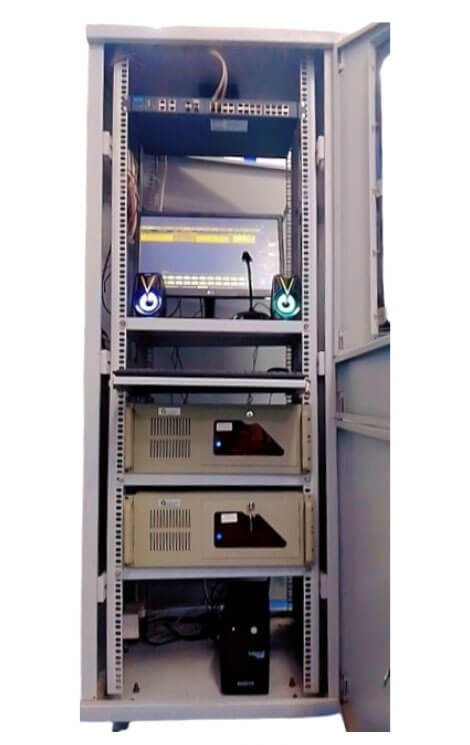

Central Data Controller
Integrated with NTES & CAP
- Location: Centralized system.
- Features: Manages and distributes accurate and timely information to all display units.
- Benefits: Centralized management, reliable data distribution, enhanced coordination.

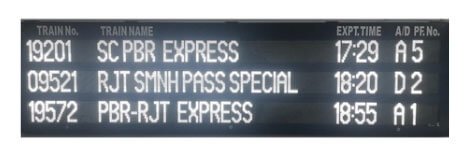

Multiline Display Board (3 Line MLDB)
- LED: White LED
- Pixel Pitch: P10
- Location: Prominently placed at stations.
- Features: Displays train numbers, arrival/departure times, platform numbers, and schedule changes.
- Benefits: High visibility, comprehensive information, real-time updates.

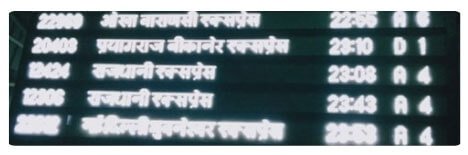

Multiline Display Board (5 Line MLDB)
- LED: White LED
- Pixel Pitch: P10
- Location: Prominently placed at stations.
- Features: Displays train numbers, arrival/departure times, platform numbers, and schedule changes.
- Benefits: High visibility, comprehensive information, real-time updates.

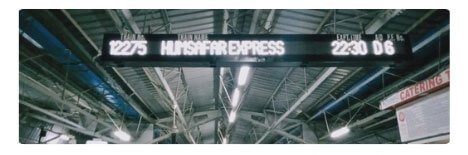

Single Line Display Board (SLDB)
- LED: White LED
- Pixel Pitch: P10
- Location: Key points within the station.
- Features: Displays train arrivals, departures, and platform numbers.
- Benefits: Quick reference, rapid updates, strategic placement.

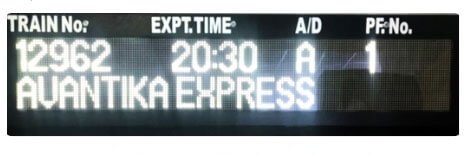

At-A Glance Display Board (AGDB)
- LED: White LED
- Pixel Pitch: P10
- Location: FOB & Strategically placed at prominent positions within the station.
- Features: Displays real-time updates on train arrivals, departures, platform numbers, and delays.
- Benefits: Quick Information Access, Enhanced Visibility, Real-Time Updates.

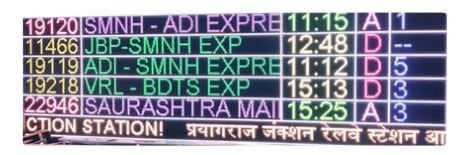

Outdoor Video Display (OVD)
- LED: RGB
- Pixel Pitch: P10
- Location: Open areas/Entrance of the station.
- Features: Provides dynamic and engaging visual content, real-time train schedules, important announcements, Videos & advertisement.
- Benefits: Dynamic visuals, wide coverage, informative and interactive.

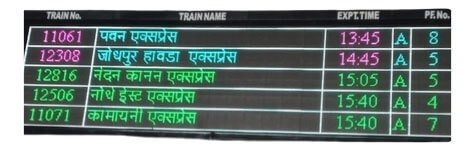

Indoor Video Display Board (IVD)
- LED: RGB
- Pixel Pitch: P7.5
- Location: Within station buildings (waiting areas, concourses).
- Features: Provides up-to-date information, video & advertisement.
- Benefits: Convenient access, consistent updates, strategic placement.

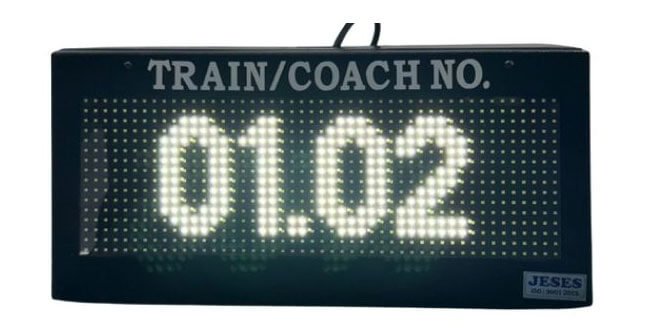

Coach Guidance Display Board (CGDB)
- LED: White LED
- Pixel Pitch: P10
- Location: Along platforms.
- Features: Displays coach numbers and their positions.
- Benefits: Streamlined boarding, efficient passenger flow, clear instructions.

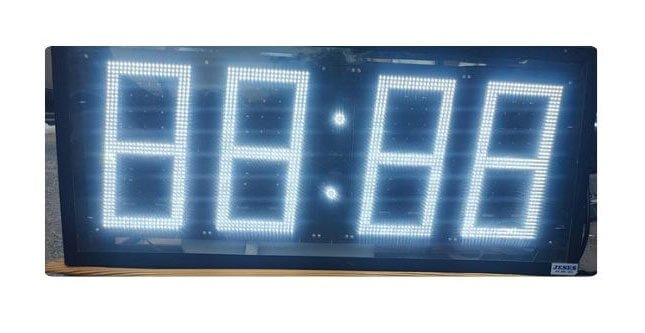

GPS Synchronization Digital Clocks
- Features:
- HH:MM format
- Unmatched Precision
- Robust Reliability
- Seamless Integration
- Low Maintenance
- Benefits:
- Easy Installation
- Enhanced Punctuality and Scheduling
- Passenger Satisfaction
- Operational Efficiency
- Cost-Effectiveness

All in One Video Display Board
- LED: RGB
- Pixel Pitch: P5
- Location: Placed in high-traffic areas such as station entrances, waiting halls, and platforms.
- Features: Provides dynamic visual content including train schedules, important announcements, safety messages, and advertising.
- Benefits: Multifunctional Display, Engaging Content, Wide Coverage, Real-Time Information

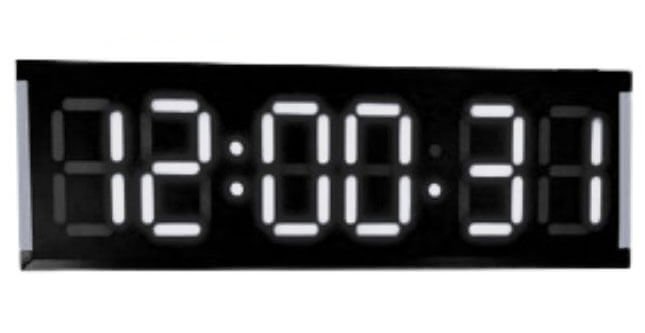

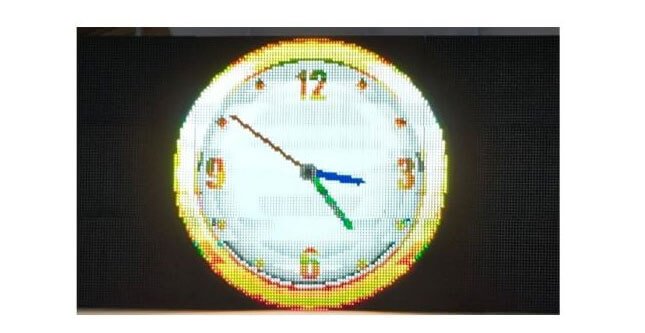

GPS Synchronization Digital Clocks
- Features:
- HH:MM:SS format
- Clear LED Display
- Multiple Time Formats
- Automatic Brightness Adjustment
- Backup Battery
- Benefits:
- Modern Aesthetic
- Energy Efficient
- Easy to Use
